Custom OEM Motor Development: Process & Timeline

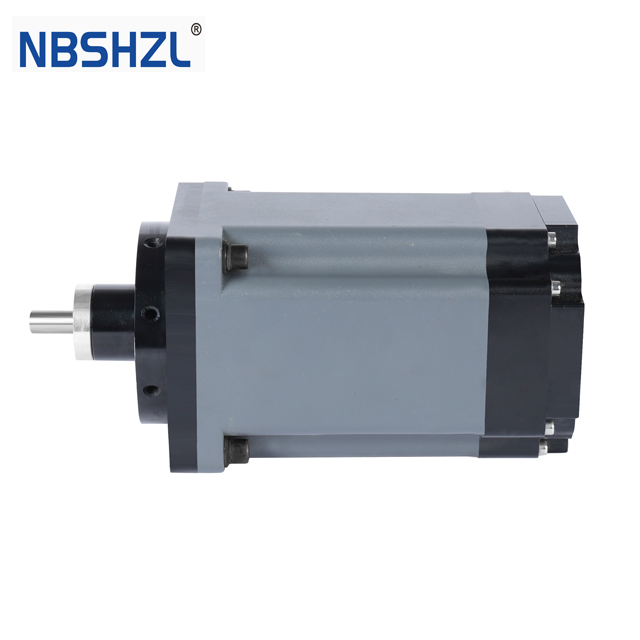

Off-the-shelf motors solve 70% of applications. For the other 30% — where your equipment has a unique mechanical interface, a specific torque-speed profile, or special environmental requirements — a custom OEM motor is the right approach. As a manufacturer that develops 15-20 new custom motor configurations per year, this article explains our development process so you know exactly what to expect.

When Does Custom Make Sense?

Custom OEM development is worth the investment when:

• Mechanical integration: Your equipment has a specific mounting interface, shaft diameter or overall length constraint that no standard motor fits. This is the most common reason — roughly 60% of our custom projects.

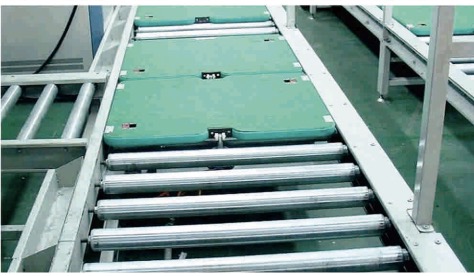

• Unique torque-speed profile: You need a specific combination of torque, speed and voltage that is not covered by standard windings. For example, a 48V motor delivering 15 N.m at exactly 80 RPM for a specialized conveyor application.
• Environmental requirements: IP67 sealing, food-grade materials, extreme temperature range (-40C to +70C), or explosive atmosphere (ATEX) compliance.
• Volume justification: Your annual volume is 200+ units, making it economical to amortize tooling costs across the production run.
• Competitive differentiation: A custom-designed motor gives your product a performance or integration advantage that competitors using off-the-shelf motors cannot match.

The 5-Phase Development Process

Phase 1: Specification Review (Week 1-2)

Everything starts with your application requirements. Our engineering team reviews:

• Performance requirements: Rated torque, rated speed, peak torque, voltage, duty cycle
• Mechanical interface: Mounting dimensions, shaft specifications, overall envelope constraints
• Environmental conditions: Operating temperature range, IP rating, vibration/shock levels
• Electrical interface: Connector type, wire length, communication protocol (CAN, RS485, analog)
• Certifications needed: CE, UL, RoHS, etc.
• Volume and timeline: Annual forecast, target first delivery date, target unit price

Based on this review, we provide a feasibility assessment within 3-5 business days, including:

• Proposed motor configuration (base platform, modifications needed)
• Preliminary performance predictions (torque-speed curve, efficiency map)
• Tooling requirements and one-time costs (if any)
• Estimated unit pricing at stated volume
• Development timeline

Phase 2: Design and Simulation (Week 2-3)

Once the specification is agreed, our R&D team begins detailed design:

• Electromagnetic simulation: FEA (Finite Element Analysis) of the stator-rotor magnetic circuit to optimize winding turns, magnet thickness and air gap for your target torque-speed curve
• Thermal simulation: Verify that the motor stays within insulation class limits at your duty cycle and ambient temperature

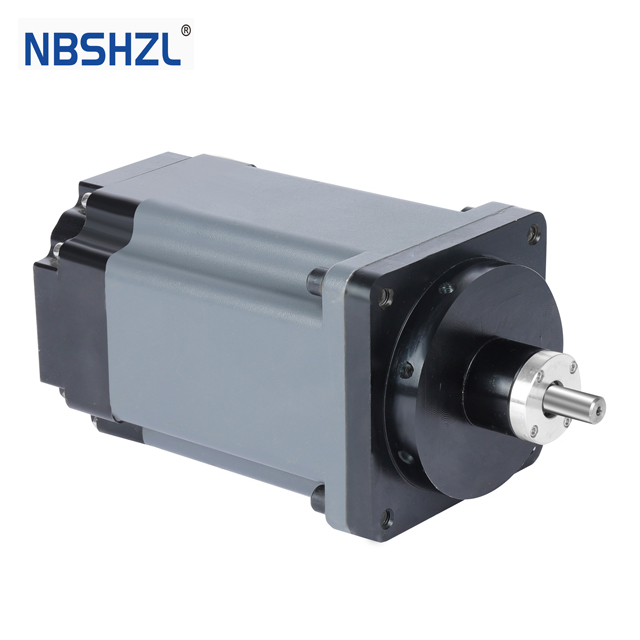

• Mechanical design: 3D CAD modeling of any custom housing, flange, shaft or bracket components

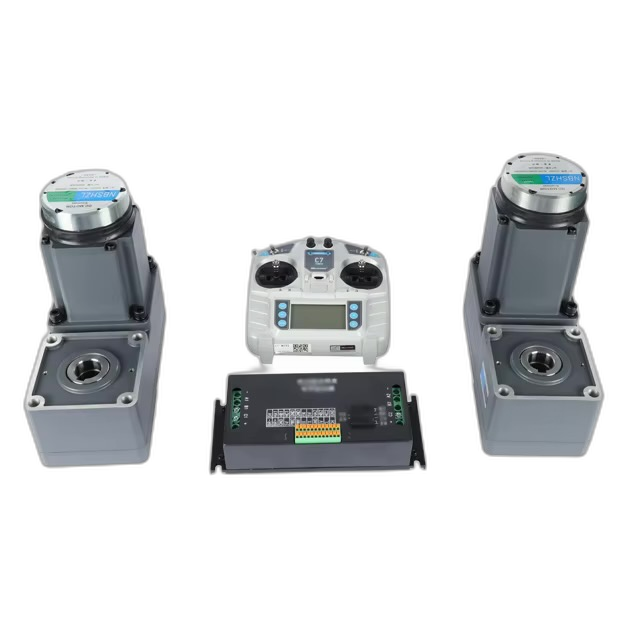

• Controller matching: Select or modify the controller hardware and firmware to match the motor's electrical characteristics

We share the 3D model (STEP file) and preliminary datasheet for your review before proceeding to prototype manufacturing.

Phase 3: Prototype Manufacturing (Week 3-6)

Prototype manufacturing typically produces 3-5 units:

• Stator winding: Custom winding pattern executed on our CNC winding machines. Turn count, wire gauge and winding configuration (star/delta) per the design specification.
• Rotor assembly: Magnet bonding and magnetization on the rotor core. If a new magnet geometry is required, magnet tooling takes 1-2 additional weeks.
• Housing machining: Custom flanges, end caps or brackets are CNC machined from aluminum or steel billets. For prototypes, we machine from billet rather than casting — faster turnaround, same dimensions.
• Assembly and basic testing: Motor assembled, run at no-load to verify rotation direction, noise level and Hall sensor signals. Any obvious issues caught here before formal testing.

Phase 4: Testing and Validation (Week 6-8)

Every custom motor prototype undergoes a comprehensive test sequence on our dynamometer test bench:

Test results are documented in a formal test report and sent to you along with the prototype units. If performance does not meet specification, we iterate on the design — typically one iteration is sufficient, occasionally two.

Phase 5: Production and Quality Control (Week 8-16)

Once you approve the prototype, production manufacturing begins:

• Tooling (if needed): Custom casting molds, stamping dies or injection molds are manufactured. This is a one-time investment — typical costs range from $500 for a simple flange modification to $8,000 for a completely new housing casting mold.
• Production winding: Stator winding on our automated CNC winding line. Consistency is controlled by the CNC program — every motor gets the same turn count, fill factor and winding pattern.
• Batch testing: 100% of production motors are tested for no-load current, insulation resistance and Hall sensor function. Additionally, 10% undergo full dynamometer testing to verify torque and efficiency.
• Packaging and labeling: Custom labels with your part number, our part number and full traceability marking. Each motor is individually boxed with a test certificate.

Customization Levels and Cost Impact

Not all customizations are equal in complexity and cost. Here is a realistic breakdown:

Important: Tooling costs are one-time. For production volumes of 500+ units, tooling cost per unit becomes negligible. All tooling paid by the customer remains their property and can be transferred if needed.

What We Need From You

To start a custom motor project efficiently, prepare the following:

• Mechanical drawing of the mounting interface (even a sketch with key dimensions helps)
• Performance requirements — torque (N.m), speed (RPM), voltage (V DC), duty cycle
• Environmental conditions — ambient temperature, IP rating, indoor/outdoor
• Volume forecast — prototype quantity + annual production estimate
• Timeline — when do you need prototypes? When does production start?
• Existing motor being replaced (if applicable) — manufacturer, model, datasheet

The more complete your initial specification, the faster we can provide a feasibility assessment and accurate quotation. Incomplete specifications lead to multiple rounds of clarification — this is the single biggest cause of project delays.
