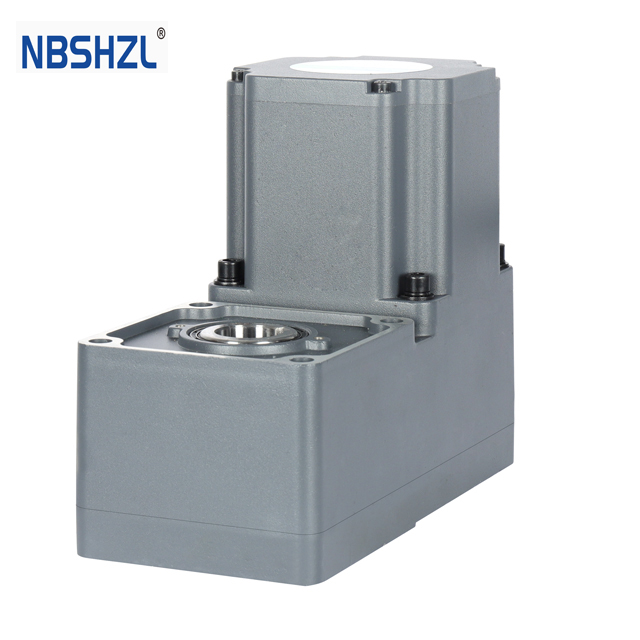

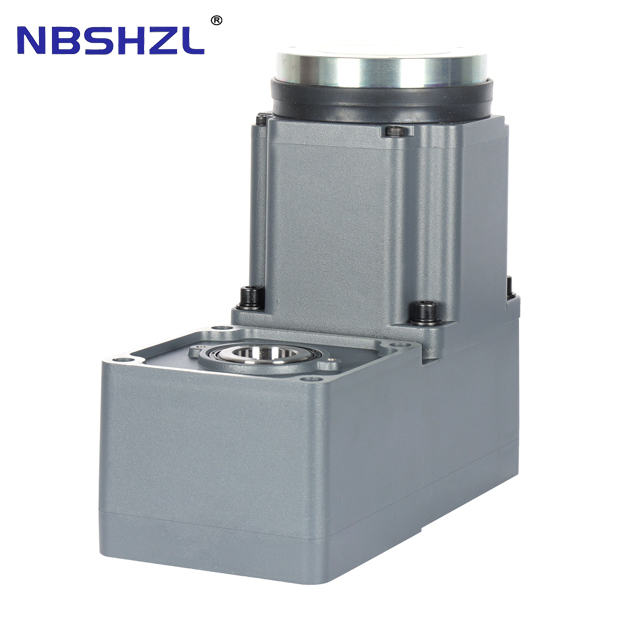

High-Power BLDC Motors
Heavy-duty 750W–3kW BLDC motors for the most demanding applications
High-power BLDC motors designed for heavy-duty machinery movers, large AGVs and industrial transport equipment where maximum torque and continuous operation are critical. Available in dual-motor configurations for payloads up to 60+ tons.
Key Features
- Up to 3kW continuous power output
- Heavy-duty bearing design for high radial and axial loads
- Forced air or liquid cooling for sustained operation
- Dual motor configurations for 40–60+ ton payloads
- Tandem pairing possible for 100–120 ton combined capacity
- Matched high-current controllers with regenerative braking
Common Applications
Technical Specifications
| Parameter | Value |
|---|---|
| Motor Diameter | 120mm / 130mm |
| Power Range | 750W – 3,000W |
| Voltage Options | 48V / 72V DC |
| Rated Torque | Up to 30 N.m (motor only) |
| Rated Speed | 2,000 – 3,000 RPM |
| Cooling | Forced air or liquid cooling |
| Bearing Design | Heavy-duty, double-sealed |
| Brake | Dual electromagnetic + parking brake |
| Controller | High-current dual-channel, 150A rating |
| Protection | IP54 / IP65 |
| Duty Cycle | S1 continuous |
All specifications are customizable. Contact us with your exact requirements for a tailored recommendation.
Business Terms
MOQ
10 pcs (sample order)
100 pcs (bulk order)
Sample
Available, $50–$200 depending on model
(refundable on order)
Lead Time
7–10 days (stock models)
25–35 days (custom)
Payment
T/T 30% deposit,
70% before shipment
Shipping
FOB Ningbo
Air & sea freight available
Customization
Voltage, shaft, gearbox ratio, connector, braking — all customizable
Ready to Get Started?
Tell us your application requirements — our engineers will recommend the optimal configuration and provide pricing within 12 hours.
