L-Type Geared BLDC Motors
Right-angle geared BLDC motors — the workhorse of heavy-duty drive systems

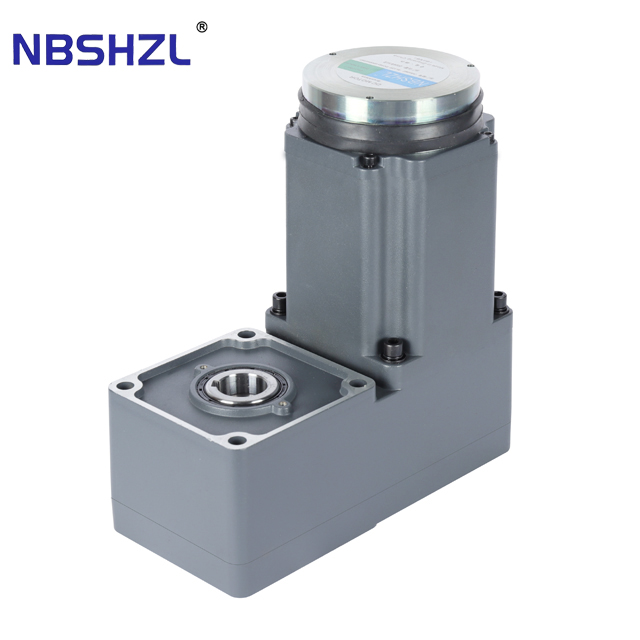

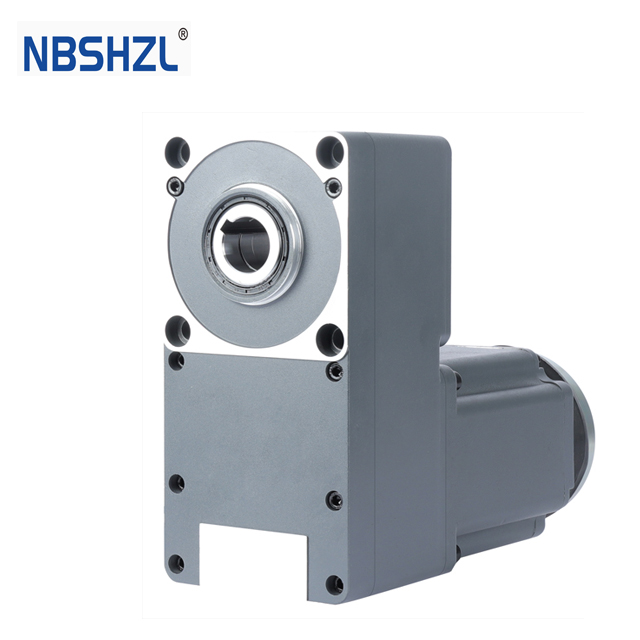

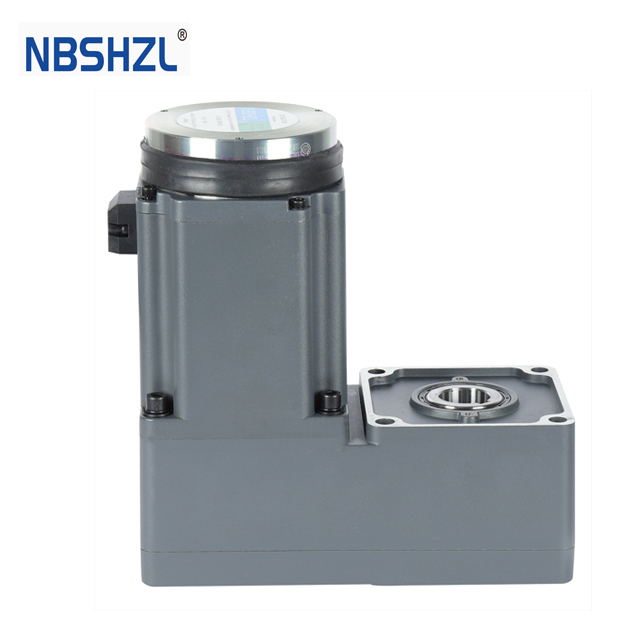

L-type geared motors combine a brushless DC motor with a right-angle worm or helical gear reducer in a compact L-shaped package. This design places the motor perpendicular to the output shaft, making it ideal for drive wheel modules, powered trolleys and space-constrained equipment where a straight inline motor would not fit.
Key Features
- Compact right-angle profile saves space in drive wheel assemblies
- Worm gear option provides self-locking for slope-holding applications
- Helical gear option for higher efficiency and lower noise
- Integrated electromagnetic brake for fail-safe operation
- Multiple flange sizes from 60mm to 120mm for different payload classes
- Custom shaft, mounting, winding and connector configurations available
Common Applications
Technical Specifications
| Parameter | Value |
|---|---|
| Motor Diameter | 60mm / 80mm / 90mm / 104mm / 120mm |
| Power Range | 30W – 2,000W |
| Voltage Options | 12V / 24V / 36V / 48V / 72V DC |
| Gear Type | Worm gear or helical gear |
| Gear Ratio | 5:1 to 200:1 |
| Output Torque | Up to 120 N.m (model dependent) |
| Output Speed | 15–300 RPM (ratio dependent) |
| Brake | 24V electromagnetic, spring-applied (optional) |
| Encoder | 1000 PPR incremental (optional) |
| Protection | IP54 / IP65 |
| Commutation | Hall sensor, 3-phase |
| Operating Temp | -20°C to +55°C |
All specifications are customizable. Contact us with your exact requirements for a tailored recommendation.
Business Terms
MOQ
10 pcs (sample order)
100 pcs (bulk order)
Sample
Available, $50–$200 depending on model
(refundable on order)
Lead Time
7–10 days (stock models)
25–35 days (custom)
Payment
T/T 30% deposit,
70% before shipment
Shipping
FOB Ningbo
Air & sea freight available
Customization
Voltage, shaft, gearbox ratio, connector, braking — all customizable
Ready to Get Started?
Tell us your application requirements — our engineers will recommend the optimal configuration and provide pricing within 12 hours.
