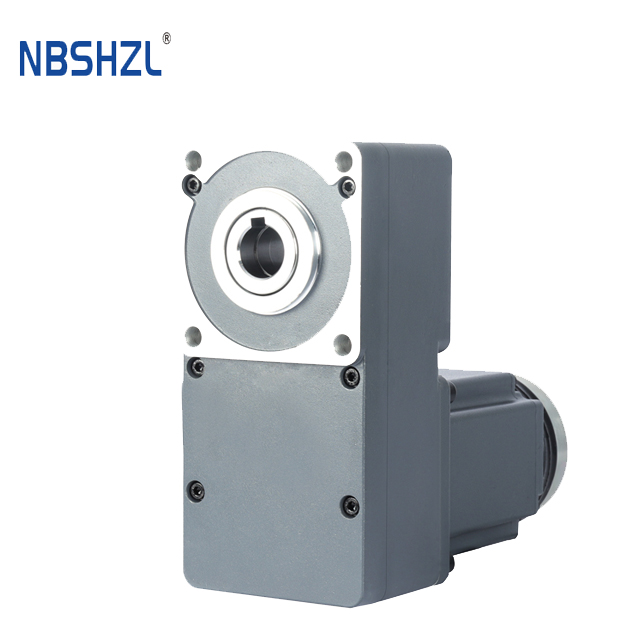

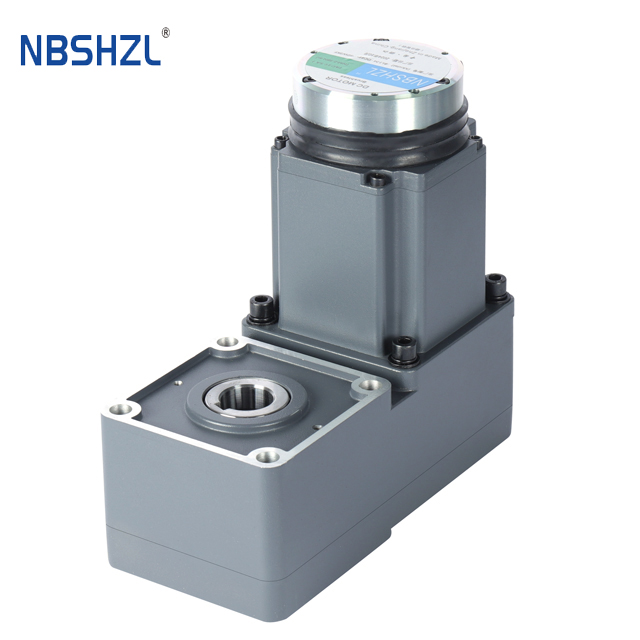

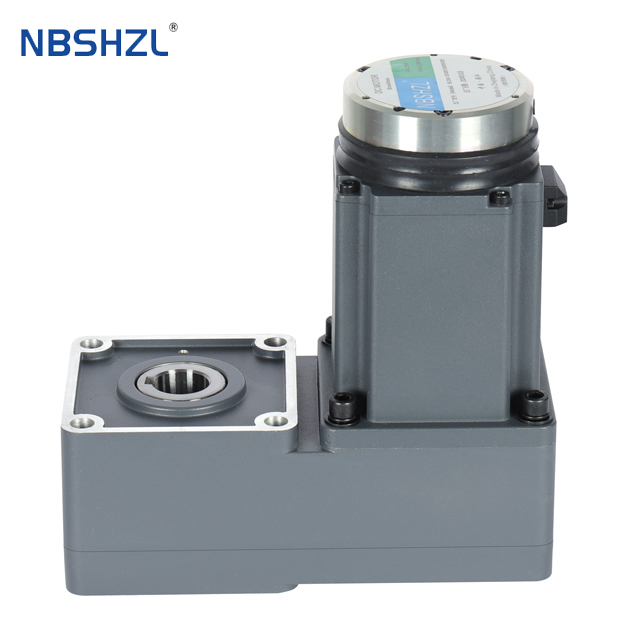

R-Type Geared BLDC Motors
Compact inline geared BLDC motors for coaxial drive configurations
R-type geared motors feature a compact right-angle or inline gear reduction with a coaxial output shaft. The smaller form factor makes them ideal for AGV wheel modules, conveyor drives and applications where an L-type motor is too large.
Key Features
- Compact coaxial design — motor and output on same axis
- Low-noise helical gears for quiet indoor operation
- Smaller profile than L-type at equivalent power ratings
- Optional encoder for closed-loop speed and position control
- Suitable for AGV wheel modules with limited mounting space
Common Applications
Technical Specifications
| Parameter | Value |
|---|---|
| Motor Diameter | 90mm / 104mm |
| Power Range | 120W – 750W |
| Voltage Options | 24V / 36V / 48V DC |
| Gear Type | Helical gear, coaxial |
| Gear Ratio | 10:1 to 100:1 |
| Output Torque | Up to 50 N.m |
| Noise Level | < 55 dB |
| Encoder | Optional incremental encoder |
| Protection | IP54 / IP65 |
| Commutation | Hall sensor, 3-phase |
| Operating Temp | -20°C to +55°C |
All specifications are customizable. Contact us with your exact requirements for a tailored recommendation.
Business Terms
MOQ
10 pcs (sample order)
100 pcs (bulk order)
Sample
Available, $50–$200 depending on model
(refundable on order)
Lead Time
7–10 days (stock models)
25–35 days (custom)
Payment
T/T 30% deposit,
70% before shipment
Shipping
FOB Ningbo
Air & sea freight available
Customization
Voltage, shaft, gearbox ratio, connector, braking — all customizable
Ready to Get Started?
Tell us your application requirements — our engineers will recommend the optimal configuration and provide pricing within 12 hours.
